PS20 Residential/Commercial Energy Storage System

5 years warranty in Taiwan

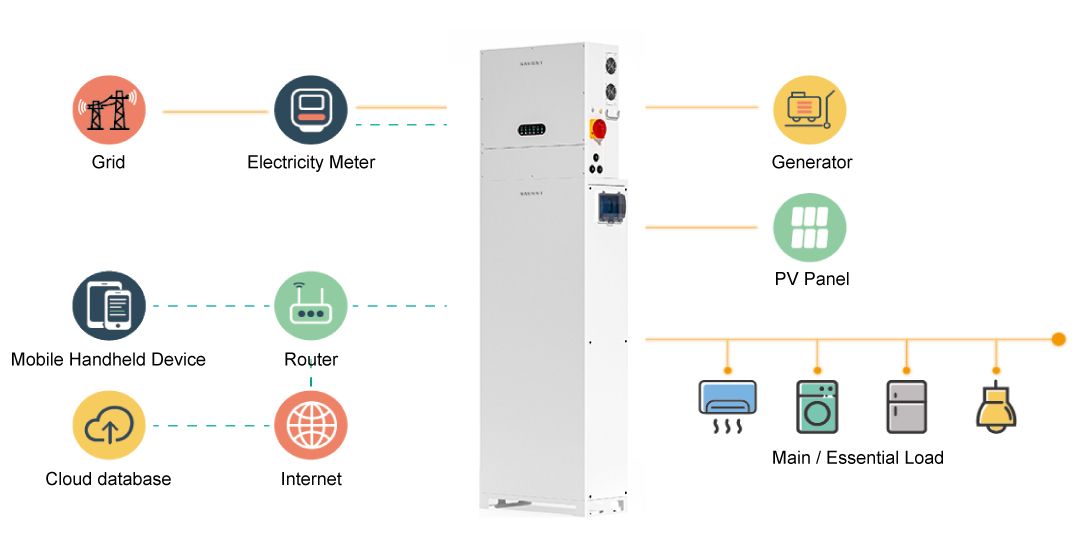

Beautiful texture and easy installation： modular design, Up to 8 sets of ESS can be connected in parallel.

11.5kW high power output：suitable for home/commercial use

High safety：UL9540 complete system certification

Intelligent management：UI app interface

Production Specification

Model			PS20 11.5kW/20kWh
Multiple Charging	PV Input	Max. Power	2 x 8.5kWp
		MPPT Operating Voltage	175 〜 380Vdc
		Max. Current	2 x 26A
	Grid Input、Generator Input	Rated Power @220V	11.5kW
		Voltage Range	216 〜 264Vac
		Frequency Voltage	55 〜 65Hz
	Output Power	Rated Power @220V	11.5kW
		Rated Voltage	1Φ3W 110 / 220V
		Max. Current	52A
Battery System	Safety Material	LiFePO4	Does not burn or explode
	Huge Capacity	Rated Capacity	20kWh
		Usable Energy	18.5kWh
		Rated Voltage	384Vdc
		Number of machines parallel expanded	8台 (73.6kW / 160kWh)
Basic Parameter	Dimension (W x H x D)	Comprehensive Power Control System	650 x 620 x 241.5 mm
		Battery System	650 x 1550 x 310 mm
	Weight	Comprehensive Power Control System	43kg
		Battery System Cabinet	69.6kg
		Pluggable Battery Module	21.5kg (Single)
	Safety Protection	Body Protection	IP65 entirely
		Safety Mechanism	Quick shutdown、Surge protection、Anti-islanding protection、Over-temperature protection、Over-current protection、Ground fault isolation
Standards Compliant		Product	UL9540、UL1741、UL1973、UL1642、UL1998、CSA22.2
		Power Grid	EEE 1547、Rule21
		EMC	FCC Part 15 Class B

* The company does not assume any relevant responsibility for any omissions, misstatements or non-factual statements (whether express or implied) in this product specification. Please contact our business for advanced information.
