Taipower DREAMS Solutions
The solar gateway and monitoring software independently developed by BillionWatts have passed the Taipower DREAMS test successively, can be connected with Taipower DREAMS and meet the requirements of Taipower DNP3.0 protocol. It can accept the dispatch of Taipower and return the power generation information in time to ensure the quality of the power supply.
Solution One
One gateway to meet the data return requirements of Taipowr DREAMS
Advantages：Applicable to sites with existing monitoring systems
1
Easy to integrate with the existing inverter, meter, and monitoring system.
2
No need to bind a monitoring software long contract; flexible configuration.
3
Simple equipment, price advantage, easy to set up and maintain.
4
Perfect after-sales service, hardware warranty for 5 years.
SG6400NZL passed Taipower’s DREAMS test
SG6400NZL Smart Monitoring Solar Gateway
- Passed the certification of TaiPower’s DREAMS DNP3.0 and conformed to the specification of NCC.
- Use LTE/4G to avoid the difficult applying for DSL or fiber network in the field.
- Support multiple communication technologies, including RS485 and 802.11n Wi-Fi module.
- Capable of 7 days’ data storage.
- With GPS function to locate the power plant conveniently.
- Support RESTFul APIs, remote firmware update, confirm PV Gateway connection and offline status, allow remote setting of hardware peripherals including LTE, Ethernet, RS485, Time Zone, and other settings.
- Diversified VPN protocol for ensuring data security.
- Integrate multi-brand Inverter and sensor information to improve management efficiency.
- The built-in SD card can still record the status when disconnecting and upload data automatically after reconnecting.
- We provide the Billion Watts version API to customize the cloud system easily.
- We satisfy customers’ demands with our self-developed products, such as adding a driver to a new PV inverter, etc.
Explanation of important terms
- DNP3.0 (Distributed Network Protocol 3.0)：Distributed Network Protocol 3.0
- DREAMS (Distributed Renewable Energy Advanced Management System)：Distributed-level renewable energy management system, which uses solar PV gateways to collect power generation information from sites, and uploads it to the data collection workstation of the power dispatch office for dispatchers to carry out Power generation forecast and dispatch decision.
Solution II
A Gateway + Pixel View, taking into account the site monitoring and DREAMS data return
+
- A full range of software and hardware independently developed and integrity verified.
- The whole series of software and hardware passed the vulnerability scanning.
- Use AES128 encryption to transmit the power generation data of the site.
- The international-level cloud data center (Tier 3+ IDC) service covers the whole world, hardware network equipment dual backup (HA), and the website has passed the TWCA security certification.
- Comprehensive data disconnection recovery mechanism, exception elimination, and warning notification.
Solar Monitoring and DREAMS data return Structure Diagram
Advantage
1
Satisfy the requirements of monitoring and DREAMS data return, greatly reducing the telecommunications cost.
2
One Gateway meets dual requirements, saves space, easy to maintain.
3
Support all solar monitoring requirements, comprehensive software interface, applicable to all types of sites, and can set permissions for different levels.
4
Pixel View 4.0 uses AI to achieve failure analysis, fault diagnosis, power generation forecast, and smart workforce dispatch and can perform abnormal preventive maintenance.
5
Pixel View 4.0 supports more than 100 types of inverters and meters without additional hardware or engineering, greatly improving the convenience of procurement.

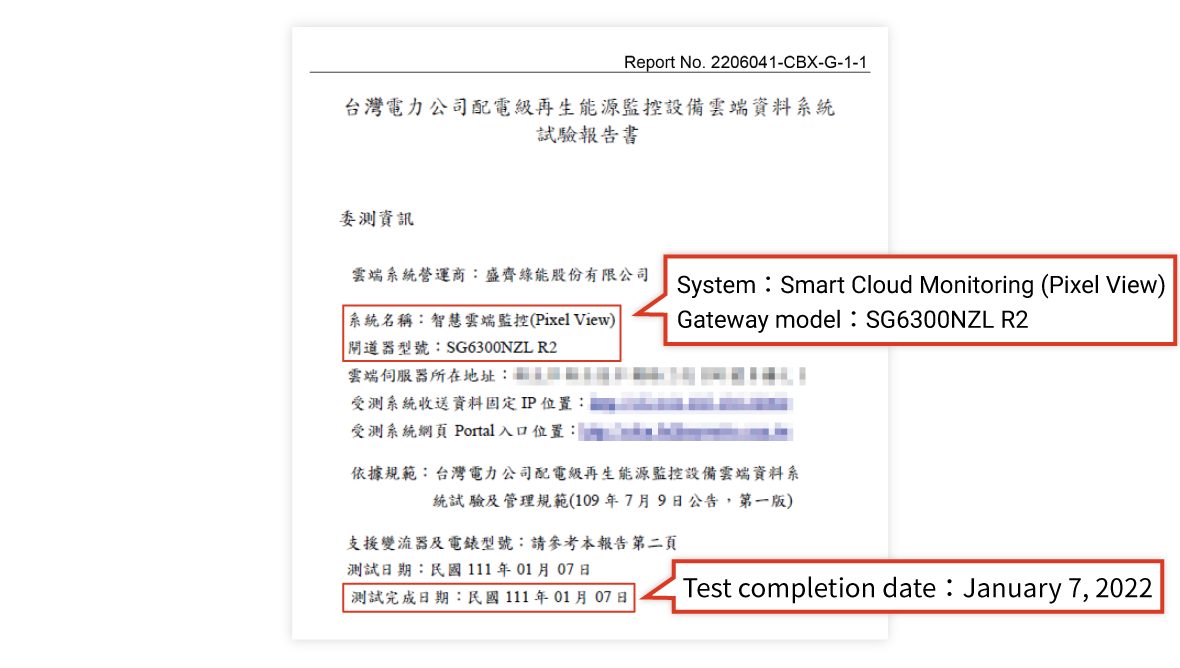

Both SG6300NZL R2 and Pixel View passed the DREAMS test
SG6300NZL R2 Smart Monitoring Solar Gateway
SG6300NZL R2 is an essential hub of BillionWatts’ Pixel View solar intelligent cloud AI monitoring system. The hardware specifications are industrial-grade heat-resistant design. A single device can receive multiple sensor data (including module thermometer, Atmospheric temperature, Anemometer, and Pyranometer) through standard protocols such as Modbus RTU and TCP and supports various brands of Inverter data reading and DC array/AC meter information.
The wired network or 3G/4G network can be selected for data transmission to the Internet, and the data collected by the power station can be seamlessly transmitted to the back-end management platform, providing a comprehensive PV monitoring and transmission solution.
Pixel View Smart Monitoring Cloud System
- Passed the Taipower’s DREAMS test.
- Effectively reduce hardware procurement and installation cost.
- The self-developed Pixel View monitoring system has been installed on site with the capacity of more than 450MW.
- Receive the power generation data in real time, control smart inverter, and remotely handle the site accident.
- 24-hour detection for the faults of the field.
- Estimate the loss of power generation in the near future through AI diagnosis.
Taipower DREAMS practicality check,
BillionWatts ensures that the case field complies with the regulations
According to Taipower's latest announcement, in response to the availability of field connection capabilities for distributed-level renewable energy monitoring equipment testing and management regulations, Taipower has begun a trial implementation of inspections and statistics of daily hourly return data, which will start on 112/7/3 officially.
During the trial period (112/3/6-112/7/2)
- At 0:00 every morning, the system would conduct practical statistics.
- If the practicality of your site is lower than 95% after the statistics, the system will automatically send a notification to you for improvement.
- On the 1st of every month, a system notification letter will be sent to the sites where the overall practicality in the previous month reached less than 95%.
- During the trial period, there will be no penalties for sites with a practicality lower than 95%.
After the official implementation (after 112/7/2)
- At 0:00 every morning, the system will conduct practicality statistics.
- If the practicality of your site is lower than 95% after the statistics, the system will automatically send a notification to you for improvement.
- On the 1st of every month, a system notification letter will be sent to the sites where the overall practicality in the previous month was less than 95%.
- Suppose the average practicality of this site is lower than 95% this month, in that case, Taipower will give a penalty according to the provisions of Article 13 of the power generation system power purchase agreement.
