Heavy Electricity User Program

Safety Scheme for the Heavy Electricity Users

SolarEdge

The Advanced Technology of Fast DC Shutdown

  • The SolarEdge inverter includes a built-in RSD function, no additional equipment is required.
  • When the AC power is turned off, the DC serial cable will automatically power off.
  • The power optimizer will shut down the DC voltage automatically to protect the safety of installers, maintenance personnel and firefighters.
  • Compliant with NEC 2011 AFCI standard | NEC 2014 & 2017 Rapid Shutdown standard.

SolarEdge

The advanced technology of fast DC shutdown

  • The SolarEdge inverter includes a built-in RSD function, no additional equipment required.
  • When the AC power is turned off, the DC serial cable will automatically power off.
  • The power optimizer will shut down the DC voltage automatically to protect the safety of installers, maintenance personnel and firefighters.
  • Compliant with NEC 2011 AFCI standard | NEC 2014 & 2017 Rapid Shutdown standard.

Installation and Safety Maintenance

  • Users can monitor and diagnose errors remotely, and staff doesn't  need to work in dangerous height.
  • SafeDC™
  1. No DC voltage during installation or maintenance.
  2. When the inverter turns off or shuts off, the power optimizer and DC cable turn off automatically.
  • Build in a special-designed protection function, it can reduce the risks of fire caused by an arc fault, and conform to the specifications of the UL1699B arc detection standard.

Installation and Safety Maintenance

  •  Users can monitor and diagnose errors remotely, and personnel do not need to work in danger.
  • SafeDCTM
  1. Has no DC voltage during installation or maintenance.
  2. When the inverter turns off, the power optimizer and DC cable turn of automatically.
  • There is a specialized design that has a protection function, it can reduce the risks of the fire caused by an arc fault, and conform to the specifications with the UL1699B arc detection standard.

System Advantages

Preventive Detection Function

Arc-Fault Protection

Provide the function that detects and eliminates the arc by turning off the inverter.

Safety Maintenance Function

SafeDC™

Ensure that when the system is shut down, the DC voltage drops to a safe level in a short time.

Emergency Rescue Function

Shutdown Rapidly

Discharge to the safe voltage quickly within 30 seconds, and comply with the specifications of NEC2014, 2017, 2020.

Risk Reduction Function

Module-Level Monitoring

Send automatically the system trouble’s notifications, prevent potential security risks.

The advantages of system

Prevention detection function

Arc fault protection

Provides the ability to detect and eliminate arcing by turning off the converter

Safety maintenance function

SafeDC™

Ensures that when the system is turned off, the DC voltage drops to a safe level within a short period of time

Emergency rescue function

fast shutdown

Quickly discharge to a safe voltage within 30 seconds, in compliance with NEC2014, 2017, 2020 regulations

Risk reduction function

Module level monitoring

Deliver automatic notifications of system problems to prevent potential security risks

Operation System

  • Slide title

    Normal mode of operation

    Button

  • Slide title

    SafeDC™ Turn on

    Button

Three Phase Inverter Suitable for Medium-Voltage Power Grid 277/480v SE40K

  • Easy to install, lightweight and small size.
  • Inverter with fixed voltage, DC/AC conversion only.
  • Energy conversion efficiency: 98.1%
  • Superior safety：Integrated arc fault detection and rapid voltage shut-off function.
  • Built-in module-level monitoring：through ethernet, wireless, or wired communication to display the status of the complete system.
  • IP65：indoor or outdoor installation.
  • Smart energy management and regulation.

Lightweight

extremely high safety

Three Phase Inverter with Synergy Technology Suitable for 380/440/460/480v Up to 120kw of The Power Grid.

  • Capacity：66 kw, 100 kw and 120 kw.
  • Support 380V/440V/460V/480V power grid: Heavy electricity users can save transformer costs.
  • Energy conversion efficiency：98.5%
  • Integrated arc protection and optional rapid shutdown function (RSD) which comply with NEC2014&2017.
  • Over configuration can reach 150%.
  • Integrated safety DC switch.
  • Easy installation：one host + three auxiliary machines

Cost reduction

DC switch

Easy installation

Three Phase inverter suitable for medium-voltage power grid 277/480v

SE40K

  • Easy to install, light weight and small size.
  • Inverter with fixed voltage, can only do DC/AC conversion.
  • Energy conversion efficiency: 98.1%
  • Superior safety- Integrated arc fault detection and fast voltage shut-off function.
  • Built-in module-level monitoring that uses ethernet, wireless, or wired communication to show the status of the complete system.
  • IP65- indoor or outdoor installation.
  • Smart energy management and regulation.

Lightweight

good security

Three Phase Inverter with Synergy Technology suitable for 380/440/460/480v

up to 120kW

  • Capacity: 66 kw, 100 kw and 120 kw.
  • Support 380V/440V/460V/480V power grid: High energy users can save transformer costs.
  • Energy conversion efficiency: 98.5%
  • Integrated arc protection and Optional the function which complying with NEC2014&2017 has quick shutdown. (RSD)
  • Over configuration can reach 150%.
  • Integrated safety DC switch.
  • Easy installation: one host + three auxiliary machines

cut costs

DC switch

Easy installation

Firefighter Gateway

  • The firefighter gateway combines with the firefighter system：turn off the DC high-voltage transmission.
  • Manual or automatic DC interruption mechanism.
  • Real-time display of system DC voltage, safe and secure.
  • Emergency stop button for the entire power station system.
  • SolarEdge monitoring interface system with system shut down alarm.
  • Easy installation：DIN rail & wall installation.

5 year warranty

Firefighter Gateway Installation Example

fire gate

Firefighter Gateway

  • The firefighter gateway combines with the firefighter system to close the DC high-voltage transmission.
  • Manual or automatic DC interruption mechanism.
  • Real-time display of system DC voltage that is safe and secure.
  • Emergency stop button for the entire power station system.
  • Alarm when the SolarEdge monitoring interface system is shut down.
  • Easy installation-DIN rail & wall installation.

5 year warranty

Firefighter Gateway Installation Example

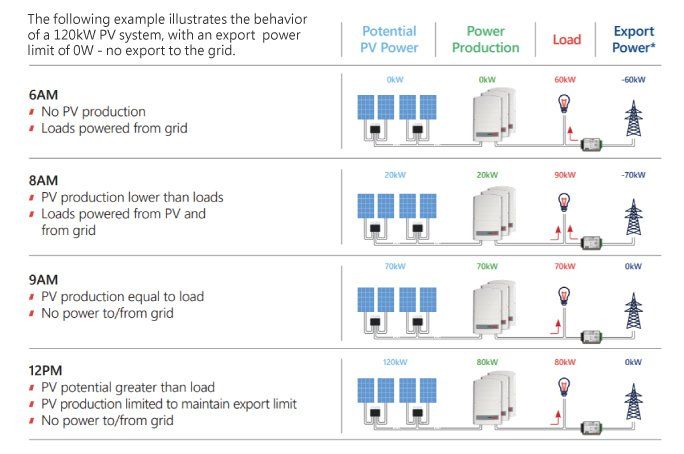

Monitoring Platform of Self-Produced and Used


  • Solar energy self-generated and used：When the output of solar energy exceeds the self-consumption, the electricity can be exported to the grid otherwise lost, or installed energy storage system to store electricity.
  • Reduce electricity bills and electricity consumption.
  • 0-export: power output <= power consumption (Pinv <= Pload)

0-Export

Case Study

Alkion, a large oil depot in italy that used SolarEdge.

  • When the AC power is turned off, SafeDC™ can reduce the DC voltage of each module to 1V, therefore it can protect the installer, maintenance personnel, and First responder(firefighter) from the electrocution during the work.
  • Reduce the risks from arc fault detection/interruption.
See More>

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

Alkion, a large oil depot in Italy that used SolarEdge.

  • When the AC power is turned off, SafeDC™ can reduce the DC voltage of each module to 1V, therefore it can protect the installer, maintenance personnel, and First responder(firefighter) from the shock during the work.
  • Reduce the risks from arc fault detection/interruption.
See more>
