Surface Temperature Patch
TS-01 series
Various metal, plastic and irregular surface temperature measurement and semiconductor panels, solar panels, meteorological observations, etc.
Product Features
- Operating temperature range：-40~ 250℃. (Higher temperature type can be customized)
- Accuracy：DIN IEC751 A Class.
- Superconducting temperature measurement has a fast response and high accuracy.
- Easy to install, resistant to harsh environments and chemicals.
Specification

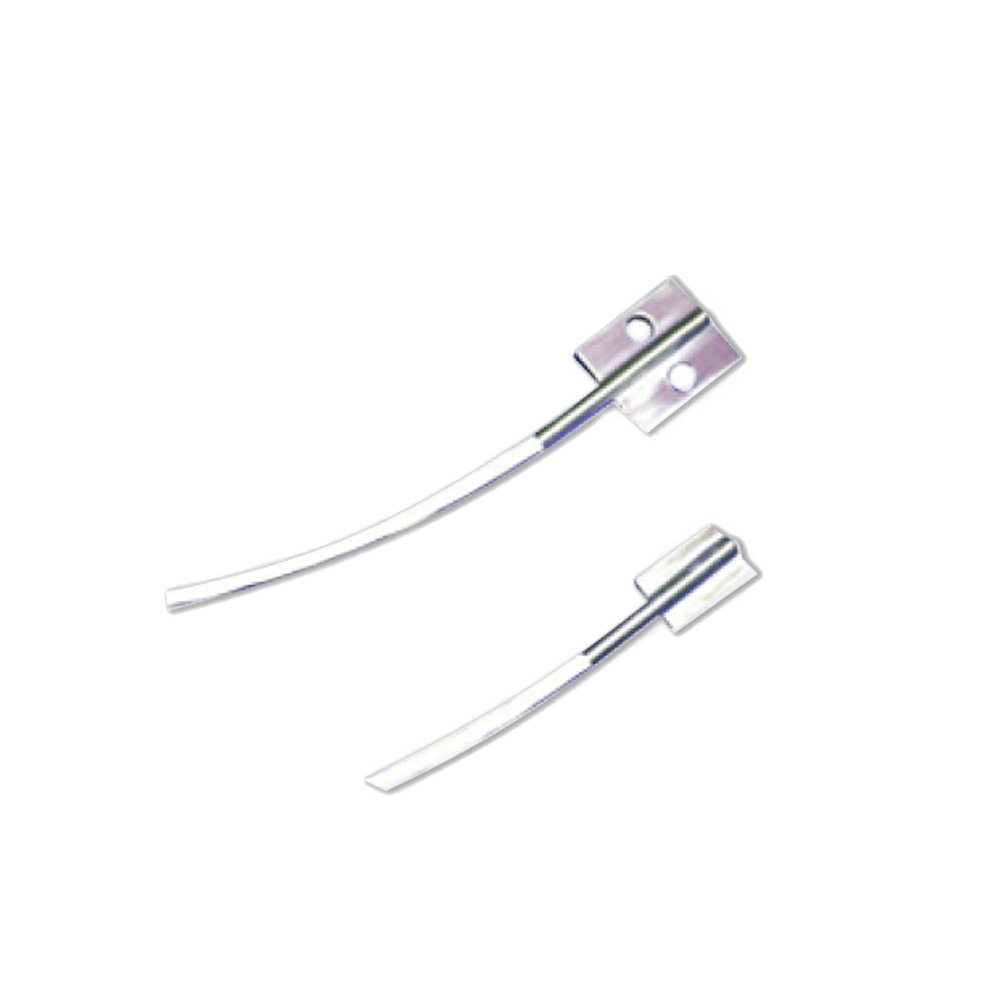

- Appearance：TS-01A attached / TS-01S screw-fixed
- Temperature sensing element: PT100Ω class A; various temperature measuring bodies or thermocouple types can also be ordered.
- SMD size：TS-01A type：10 × 16mm, t =1mm，TS-01S type：19 × 22mm, t = 1.5mm
- Response speed：about 15 seconds ※ When the surface has completely adhered
- Thermal conductivity：lower than 100℃, ≧ 0.8W/mk; higher than 120℃, >1.5w/mk, comply with ASTM D5470 standard
- Extended signal wire：weather-resistant Teflon wire; signal wire material and length can also be customized
