Billion SG3204S
Solar DC 4 Strings Meter
The DC Strings Meter for PV Panels is suitable to be installed in small to medium-sized PV Combiner Box, which can measure the power generating capacity and accumulated total energy output for up to 4 combinations (SG3204S) PV power circuit. The DC Strings Meter can also measure instant power, voltage, and current for each loop as well as detect temperature/surge in surrounding areas. Through the electric-isolated RS-485 interface, users can remotely control and monitor the operating status of each string PV panel and analyze the collected data on the computing control system to optimize power generating performance.
Wide Voltage：40Vdc~1000Vdc
Low Consumption：Below 0.5W (incl. loop voltage measuring consumptions)
Wide Temp.：-40℃~75℃
High Accuracy：Energy (kWh) & Power (W, V, A) Measuring Precision 1%+0.5%FS(@ TA 0~40℃); 2%+1%FS(@ TA -40~70℃)
Wide Range Measurement：
Voltage Range 40Vdc~1,000Vdc, Precision 0.1Vdc;
Current Range 0.1A~15A, Precision 0.01A;
Power Range 0.01kW~15kW, Precision 0.001kW;
Energy Range 0.1kWh~99,999kWh
Power Source：From outer 24~48Vdc supply
Operation：Use DIP switches to choose from 1~63 for ID, and from 2~4 for combination no.

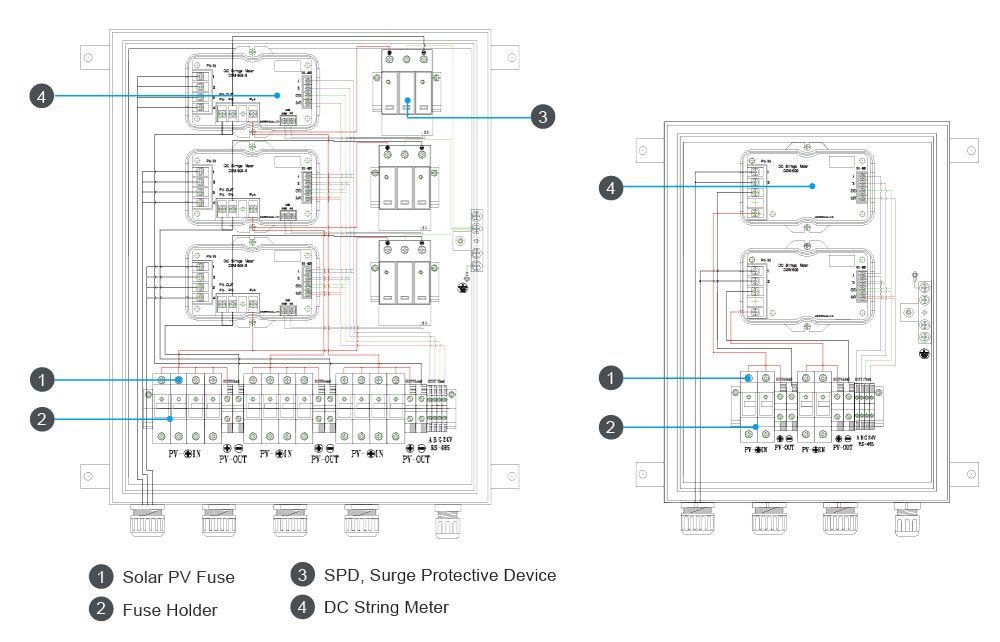

Specifications and Application Diagrams
| Model Name | SG3204S | ||
|---|---|---|---|
| Rated Current | 4 Strings; 10A for each String; | ||
| Rated Voltage | 900Vdc | ||
| Class of Accuracy (kWh.W.V.A) | @ TA 0~40°C | 1%+0.5%FS | |
| @TA -40~70°C | 2%+1%FS | ||
| Measure Display | Voltage | 40Vdc~1,000Vdc | |
| Total Current | 0.1A~60A | 0.1A~30A | |
| Total Power | 0.1kW~60kW | 0.1kW~30kW | |
| Total KWh | 0.1 kWh ~99,999 kWh | ||
| Each String Power | 0.01 kW~15kW | ||
| Each String Current | 0.01A~15A | ||
| Settngs for no. & ID | Use the DIP Switches | ||
| Comm. Interface | RS-485(Series) | ||
| Environment Temp | Measure & Record Temp. -40 °C ~75 °C | ||
| SPD Detection | ● | N/A | |
| Power Consumption | 0.5W (external 24Vdc~48Vdc) | ||
| Working Temp | -40°C~75°C，5%~95%RH | ||
| Dimensions WxHxD | 9.5(L) x 14.1(W) x 4 .0(H)cm |
| Class of Accuracy (kWh.W.V.A) | |
|---|---|
| @ TA 0~40°C | 1%+0.5%FS |
| @ TA - 40~70°C | 2%+1%FS |
| Measure Display | |
|---|---|
| Voltage | 40Vdc~1,000Vdc |
| Total Current | 0.1A~60A |
| Total Power | 0.1kW~60kW |
| Total KWh | 0.1kWh ~99,999 kWh |
| Each String Power | 0.01kW~15kW |
| Each String Current | 0.01A~15A |
| Technical Details | |
|---|---|
| Rated Current | 4 Strings; 10A for each String; Max. 40A Total |
| Rated Voltage | 900Vdc |
| Settngs for no. & ID | Use the DIP Switches |
| Comm. Interface | RS-485(Series) |
| Environment Temp | Measure & Record Temp. -40 °C ~75 °C |
| SPD Detection | ● |
| Power Consumption | 0.5W (external 24Vdc~48Vdc) |
| Working Temp | -40°C~75°C，5%~95%RH |
| Dimensions WxHxD | 9.5(L) x 14.1(W) x 4 .0(H)cm |
