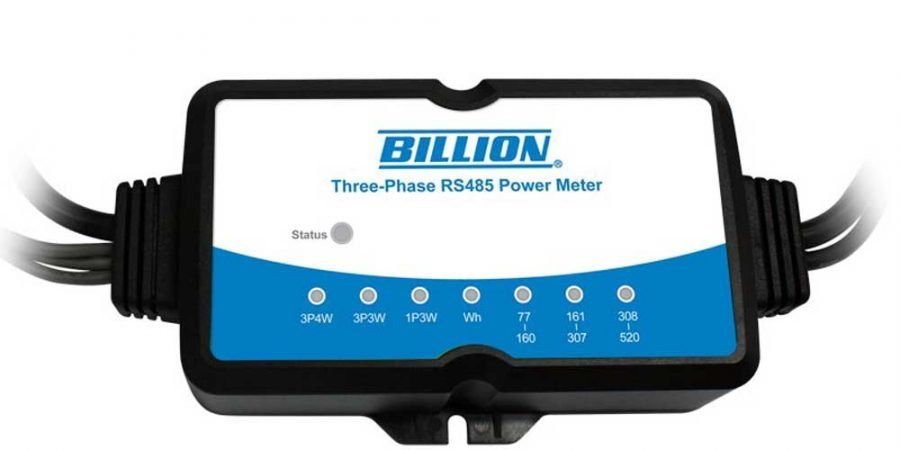

100A ~ 300A three-phase wired RS485 AC smart meter

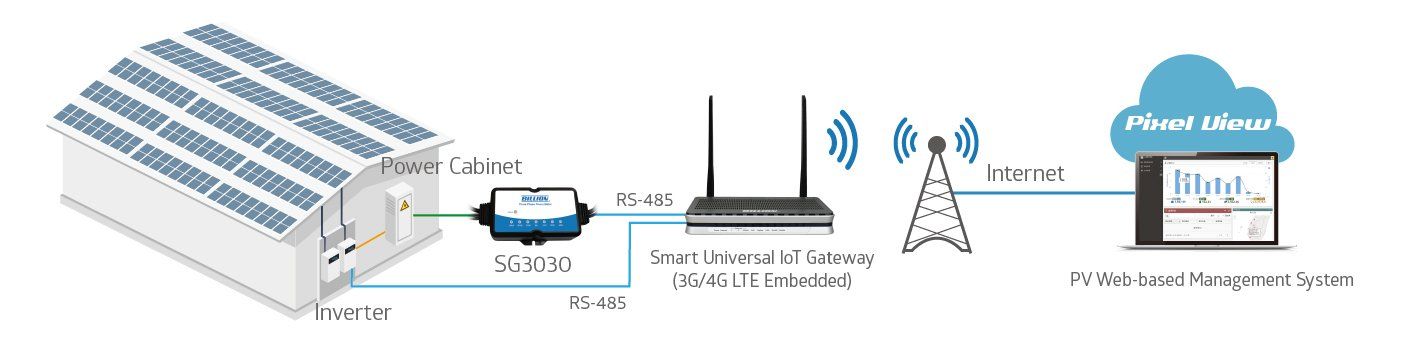

Billion Watts SG3030 series is a cost-effective energy monitoring and management solution installed in Home Area Network (HAN), buildings and factories. Billion Watts SG3030S is an RS-485 based wireless meter that helps home and building owners monitor power consumption in real time. It allows users to obtain electricity usage data for trend and electricity usage analysis. According to the analysis report, the user can adjust the electricity usage, reduce unnecessary waste and reduce energy consumption.

• Conforms to IEEE standard
• Compliant with 802.15.4 ZigBee standard
• Power usage data measurement and transmission
• < 1% Wh accuracy
• Power surge protection
• Electricity Cost Calculation
• compact size
• Designed for building and office users
• electricity company
• ZigBee network system integration and planning tool
• ZigBee Terminal Equipment Manufacturer
• Three-phase ZigBee electricity meter

Full Measurement Capabilities

Billion Watts SG3030/SG3030S series supports complete measurement functions including active power (W), total cumulative power consumption (kWh), interval power consumption (kWh), voltage (V), current (A), apparent power (VA) , power factor (PF), etc. It allows users to obtain power usage data for trend and power usage analysis. According to the analysis report, users can adjust the power usage, reduce unnecessary waste and reduce energy consumption.

High Detection Accuracy

Billion Watts SG3030/SG3030S series can detect power consumption down to 0.001kWh, allowing users to monitor energy consumption at each time period. Its detection accuracy range is ± 0.5% (At PF=1.0, according to the rated current), power surge protection (only for Billion Watts SG3030/SG3030S). With the built-in zero-crossing switch and power surge protection features, this device can protect the electrical equipment in your power system from surge damage.

External Power Control Non-Voltage/Current Contact Points

Billion Watts SG3030/SG3030S series supports normally open (NO) and normally closed (NC) contacts point, and external electrical appliances load control

Easy Installation

Billion Watts SG3030/SG3030S is compact in size and can be used as an independent user unit. You can calculate power usage anywhere in the building.
