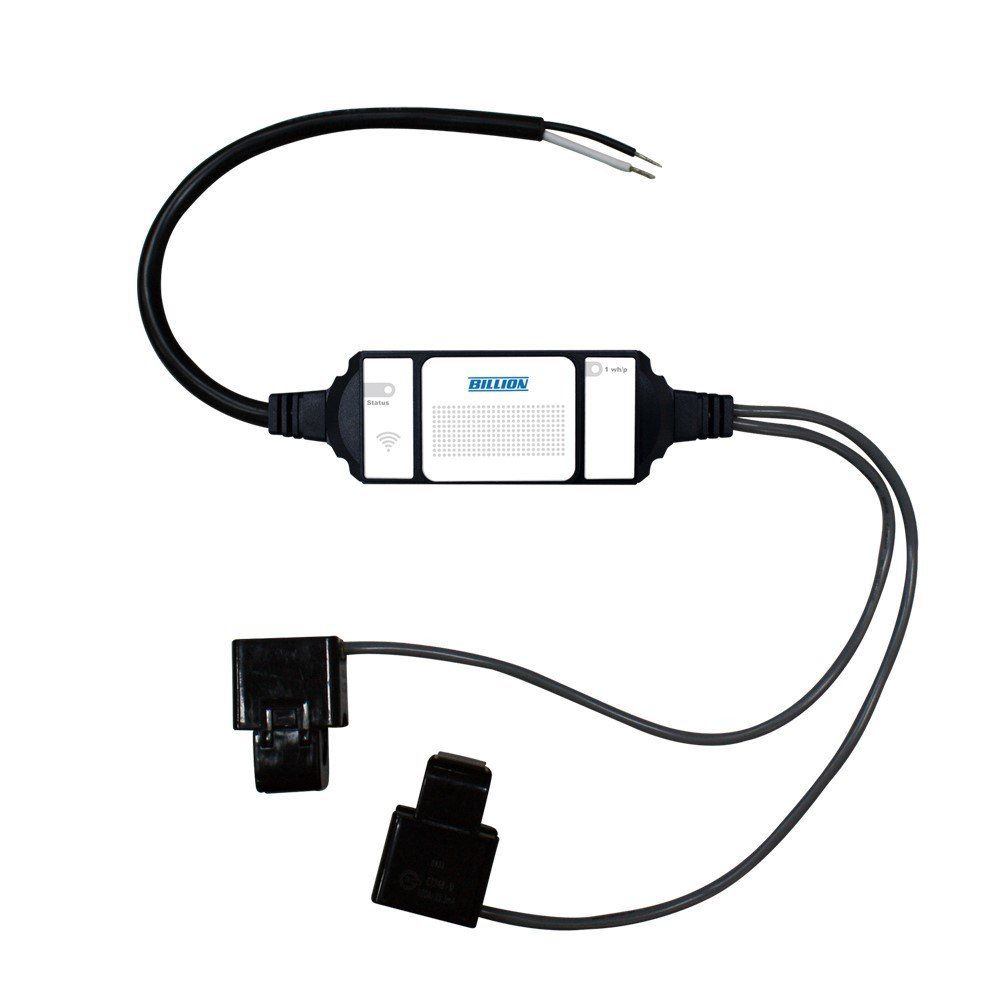

100A~200A Single Phase Wireless ZigBee Smart Meter

Billion Watts SG3015-T4 allows users to measure the power consumption of specific appliances, and power efficiency can be improved. Using the SG6200NXL smart IoT gateway, users can view real-time power usage data and status remotely. Users can even remotely set control commands and send them to the SG3015 to control the switches of electrical appliances. By installing Billion’s Smart Energy Management Solution (SEMS™) into a computer browser and integrating the SG3015 series, users can remotely monitor, track and analyze the power usage status.

• Conforms to IEEE standards
• Compliant with 802.15.4 ZigBee standard
• Electricity usage measurement and other indicator data collection
• < 0.5% Wh Accuracy
• Calculation of cost consumption
• 4 transfer types
• Power surge protection
• easy to install
• ZigBee Energy Management Solutions for Business Partners
• Power industry: solar energy, wind power generation, etc.
• ZigBee network system integration and planning tool
• Builders
• Smart energy device suppliers include IHD, load control and PCT
• Sub-table service

Remote Monitoring Energy Management

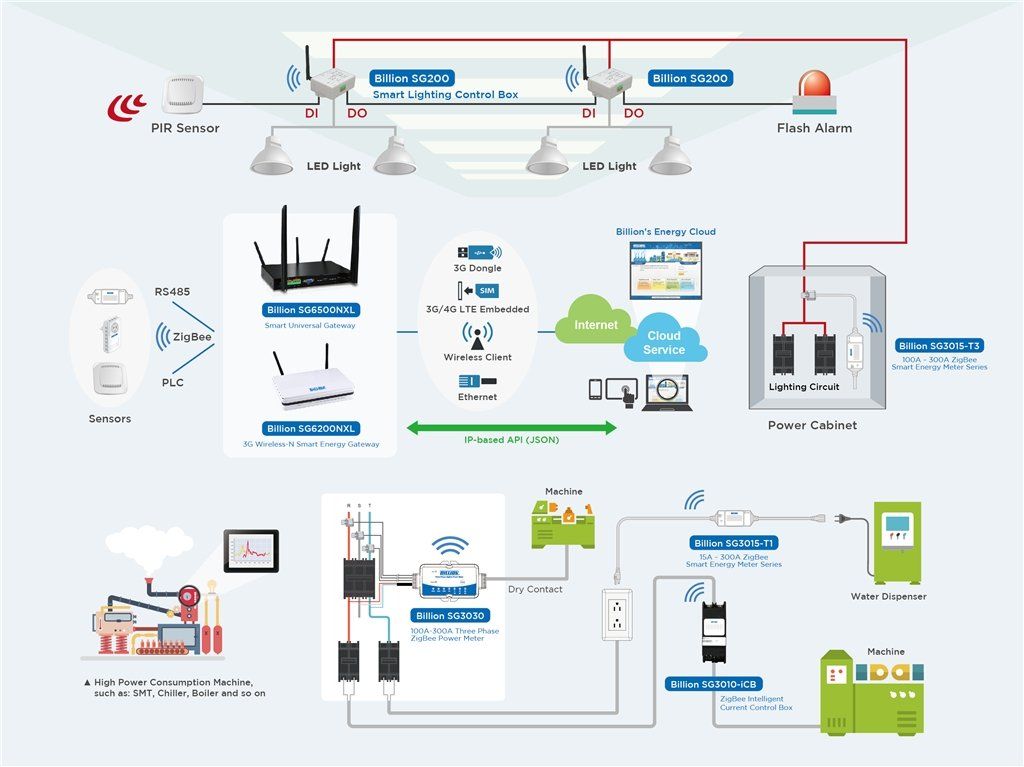

T1 and T2 meters have remote control functions, allowing users to optimize electrical appliances and energy management. SG3015-T4 can measure and store power usage data, and wirelessly transmit it to any PC, PDA or mobile phone through a smart energy gateway (SG6200NXL) or a smart IoT gateway (SG6500). Using Billion Watts SG6200NXL Smart Energy Gateway, users can use SG3015 to measure electrical appliances and view real-time energy usage data and status. The user can even remotely set the control command and send it to the SG3015 to control the switch of the electrical appliance. Install Billion's Smart Energy Management Solution (SEMS™) into the computer browser and integrate the SG3015 series, users can remotely monitor, track and analyze power usage status.

Full Measurement Capabilities

Billion Watts SG3015 series supports complete measurement functions including active power (W), total cumulative power consumption (kWh), interval power consumption (kWh), voltage (V), current (A), apparent power (VA), power factor (PF), etc. It allows users to obtain power usage data for trend and power usage analysis. According to the analysis report, users can adjust the power usage, reduce unnecessary waste and reduce energy consumption.

Accurate Measurement

Billion Watts SG3015 series can measure energy consumption to 0.001kWh. With real measurements, you can prevent power loss 24/7. (Measurement accuracy range is ± 0.5% (At PF=1.0, according to rated current)

Power Surge Protection

Both T1 and T2 meters provide this function. With the built-in zero-crossing switch and power surge protection features, this device can protect the electrical equipment in your power system from surge damage.
