Billion 5MWh Liquid-Cooling Battery Energy Storage System 20ft Container
Fusio 5.015MWh
Liquid-Cooling Battery Energy Storage System
20ft Container
Liquid-cooled battery storage system based on prismatic LFP ESS cells 314 Ah with the highest cyclic lifetime
Improved safety characteristics and specially optimised for the highest requirements on safety, reliability and performance. Suitable e.g. for industrial, utility, and grid serving applications
System Specification
| Model Type | Fusio 5.015 MWh | |
|---|---|---|
| General Specifications | Battery Type | LFP314-2P52S |
| No. of Battery Modules | 48 (6 x 8) | |
| Configuration | 12P416S | |
| Cooling Method | Liquid Cooling | |
| BMS Communication | CAN, RS485, Ethernet | |
| Gravimetric | > 111 Wh/kg | |
| Volumetric | > 117 Wh/l | |
| Application Altitude | ≤ 4,000 m | |
| Electrical | Nominal Voltage Container | 1,331.2 V |
| Operating Voltage Container | 1,123.2 ～ 1,497.6 V | |
| Nominal Energy Container | 5,015.96 kWh | |
| Nominal Charge/Discharge Rate | 0.5 P / 0.5 P | |
| Round Trip Efficiency | > 94 % | |
| Mechanical | Dimensions (L x W x H) | 6,058 x 2,438 x 2,896 mm |
| Weight Container (20 ft.) | < 45,000 kg | |
| Protection Level | IP55 | |
| Temperature Range | Operating | -30 °C ～ 55 °C |
| Storing (recommended) | -20 °C ～ 35 °C | |
| Compliance Standards | IEC 62619, IEC 62477, IEC 63056, IEC 61000, UL 1973, UL 9540A, NFPA 855, UN 38.3,RoHS, REACH, Cobalt free |
* The company does not assume any relevant responsibility for any omissions, misstatements or non-factual statements (whether express or implied) in this product specification. Please contact our business for advanced information.

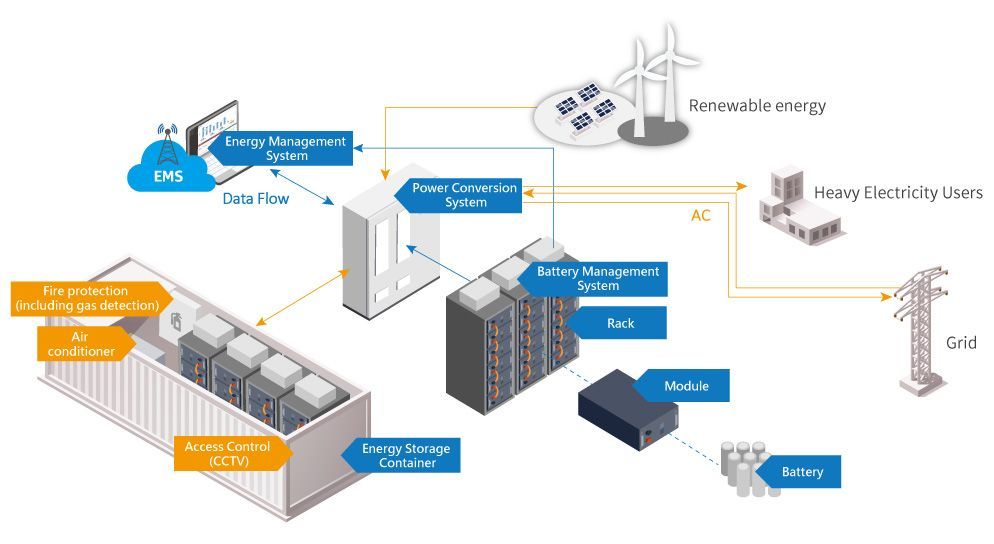

Function Block Diagram
Product Features
Integration & Flexibility
- Pre-configured and tested to minimize on-site labor and shorten project duration
- Up to 4 containers connected in 1 PCS, support 2~8h application
- Flexible layout, support back to back and side by side
- Support bottom and string and centralization PCS
High Safety
- Liquid cooling for high thermal stability
- Multi-stage fire protection, NFPA 855 compliant
- LFP cells with high cyclic lifetime
- Dedicated cell monitoring and protection system
Levelized Cost of Storage
- Excellent thermal management improves energy throughput by ensuring optimal operating temperature
- Highly integrated: including thermal management system, fire protection system, BMS, etc.
- Supports back to back and side by side installations
